How to connect tuya magnetic track light ?

Smart lighting has completely transformed homes and workspaces. Tuya magnetic track lights stand out as a multi-functional and user-friendly option. With their fixed installation, customizable lighting effects and seamless smart control, they are the favorites of DIY enthusiasts and interior designers. But if you are a novice in smart lighting, figuring out how to connect Tuya magnetic track lights to the app can be intimidating.

Don't be afraid! In this guide, we will break down the entire process into simple and actionable steps. We will cover everything from pre-installation security checks to application Settings, pairing modes. In the end, you will be able to control your Tuya magnetic track lights with your mobile phone and voice (via Google Home or Alexa), and create customized lighting scenes

Understand the Basics of Tuya Magnetic Track Lights

Before delving into the Settings, let's clarify a few key points to avoid confusion:

• Power supply type: Most Tuya magnetic track lights use a low-voltage DC 48V power supply, which is safer than the high-voltage option but requires a compatible transformer.
• Connection protocols: There are mainly two types: Wi-Fi and Zigbee. Wi-Fi is more commonly used in home Settings, while Zigbee is more suitable for large setups (each gateway supports 30 to 100 lights).
• Application Requirements: All Tuya smart lamps should use the Tuya Smart application

Step 1: Pre-installation and electrical setup

• Power off and track installation: Turn off the power of the household and fix the track with screws according to the markings. Make sure the track is level and firmly connected.
• Connect the track to the power supply: Connect the transformer to the AC power supply in your home, and then run the output line of the transformer to the power input terminal of the track. Tighten the screws to fix the wires
• Installation of the lamp: Just attach the Tuya magnetic track light to the track, and the electrical contacts on the back of the lamp will align with the conductive strips inside the track. Test whether the lamp is firm by gently swinging the fixture.
• Reconnect the circuit: Turn on the power again. When the lamp lights up, it indicates that the magnetic lamp is functioning properly
• Set up the Tuya App: Download the Tuya Smart app from the App Store or Google Play. Create an account and log in

Step 2: Connect the magnetic track light to the Tuya App & Your Wi-Fi

Now it’s time to link your light to the Tuya App. This step is nearly identical for Wi-Fi and Zigbee models (the main difference is Zigbee requires a gateway first).

• Open Bluetooth, WiFi, mobile phone Location Services

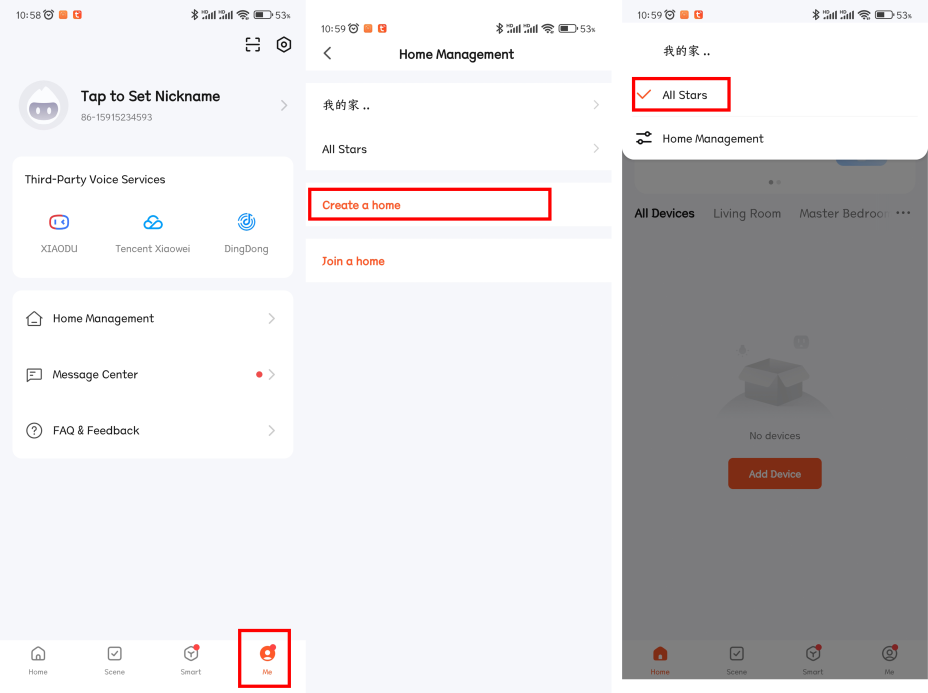

• Open the Tuya App, Create a home via "Me", choose the created home and click "Add Device"

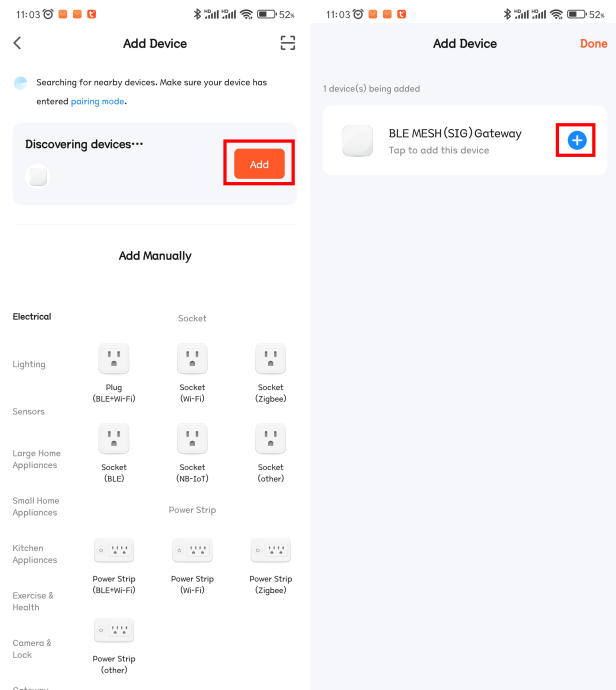

• After installing the lamp in the track, turn on the power, wait for the mobile phone to search for the signal, click "Add"
• The gateway turn on power, wait for the mobile phone to search for the signal, click the "Add"

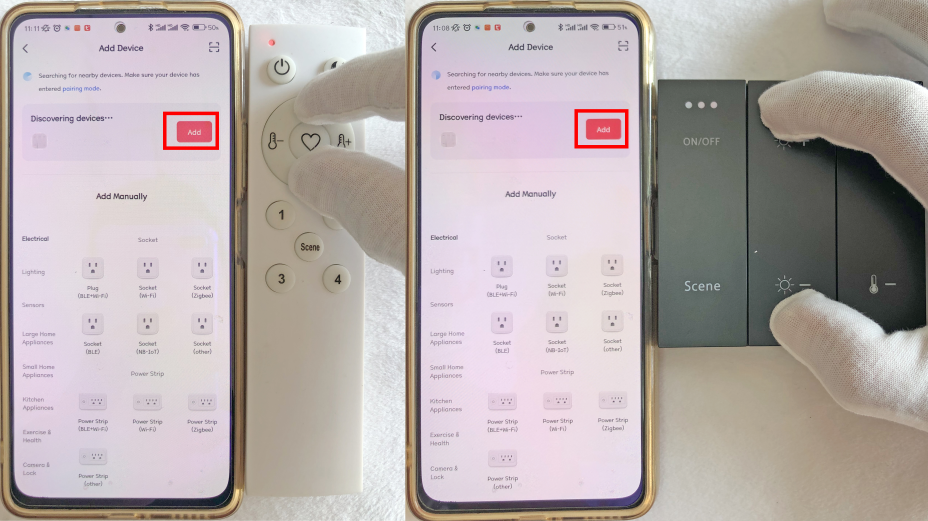

• The switch and remote are installed with the battery, press the brightness "+" "-" till the controller light flash, wait for the mobile phone to search for the signal, click "Add"

• Click connected switch and remote to add the lamps to group A, B, C, D

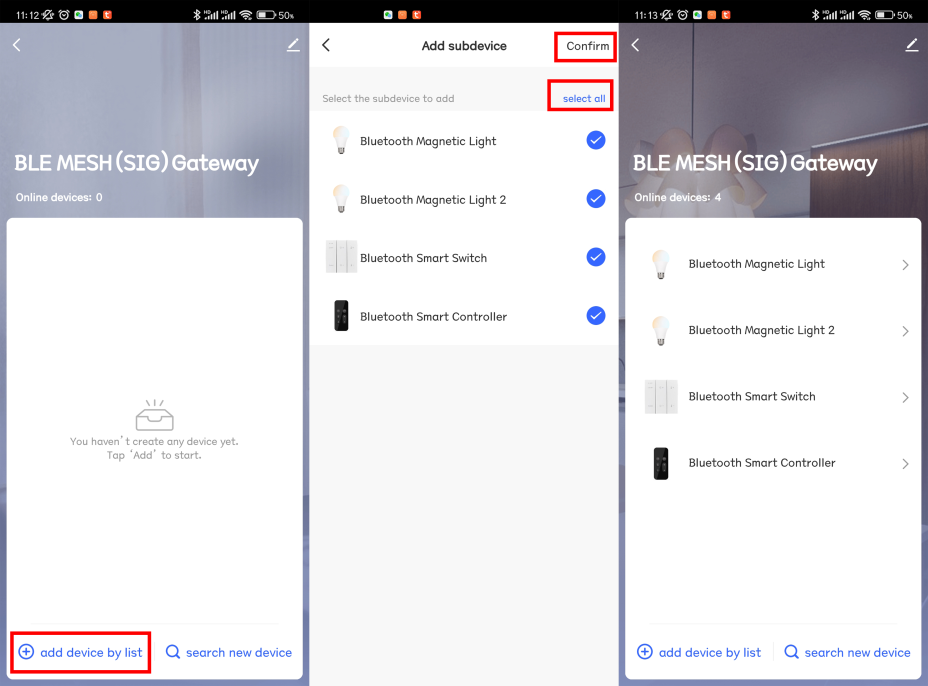

• Click the connected gateway, add the lamps , switch, remote to the gateway (add device by list)

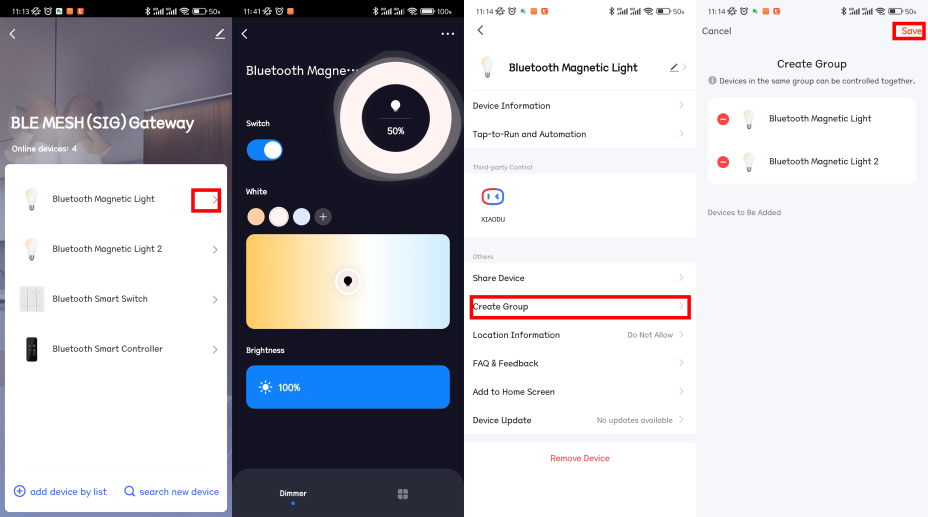

• Set group: The lamps added to the gateway and those who are not added can be set up. Click one of the lamps, click in the upper right corner, find the creation group, select the lamps that need to be added to a group, set the settings, set the settings The name of the group, save, and control the brightness and color temperature of all lamps in the same group at one time

• The straight line distance using panel control or remote control is within 15 meters
• Supported third -party App, Amazon Alexa, Google Home...
• The use of the lighting of the gateway connection will not be restricted by the distance. You can use a mobile phone to control the lamps within 1,000 kilometres.

Final thought: Enjoy your smart lighting

Connecting the Tuya magnetic track light is simpler than it seems - just follow the steps and you can complete the installation and connection of the Tuya smart lamp. Once set up, you will fall in love with its flexibility: adjust the brightness on the sofa, set a schedule to save energy, or create the perfect atmosphere for any occasion.

Has your Tuya magnetic rail light been successfully connected? If you are interested in Tuya magnetic track lights, please contact us. We have a variety of series of lamps to choose from.
